Japanese 37mm Ho-203 Cannon

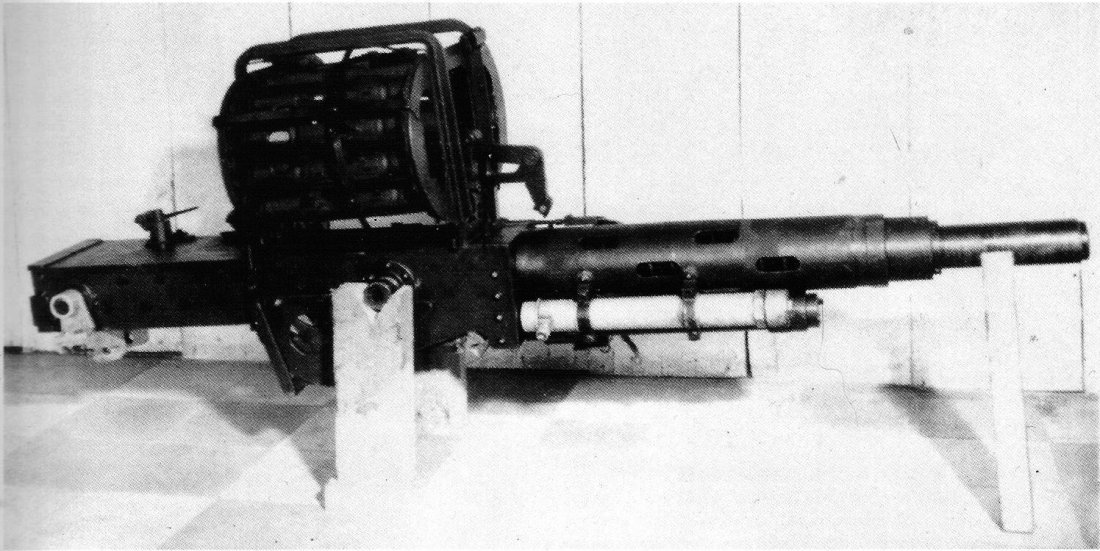

Photograph of Ho-203 cannon

U.S. Navy. Via Francillon (1979)

Specifications:

Ammunition
37 x 111 R with HE round
Projectile weight
1.05 lb
475 g
Velocity 1890 feet per second
576 meters per second
Range 2950 feet
900 meters
Rate of fire
120 rounds per minute
Gun weight
196 lbs
89 kg
Gun power
120


The Ho-203 cannon may also possibly have been known as the Type 3 37mm Machine Cannon. It seems to have been installed only on the Ki-45-KAIb "Nick", where it proved reasonably effective against large bombers.

The gun was derived from the Year 11 Type direct-fire infantry gun. It used a long recoil artillery-style falling block action and was fed from a 25-round magazine in flexible mountings or a 15-round "birdcage" endless belt in fixed mountings. The flexible version seems to have never seen combat. The rate of fire could be adjusted by changing the recoil buffer fluid, but 120 rounds per minute was typical.

Photo Gallery

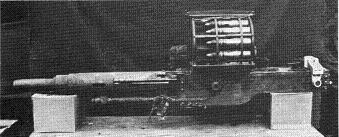

Photograph of Ho-203

U.S. Navy

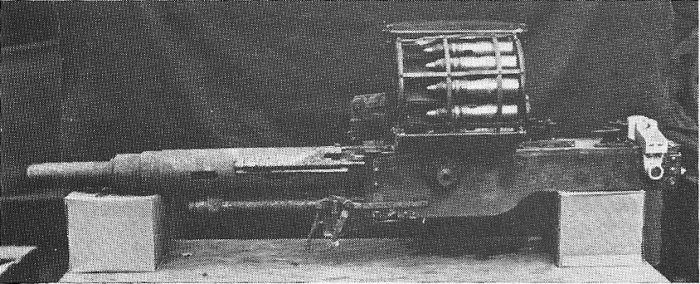

Photograph of Ho-203

NARA

References

Francillon (1979)

Mikesh (2004)

Williams and Gustin (2003)
