U.S. 16"/45 Mark 1 Gun

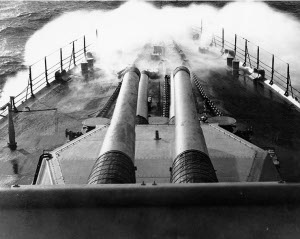

Photograph of 16"/45 Mark 1 gun turrets of USS Colorado

Naval History and Heritage Command #NH 64514


Specifications:


Bore
16"
406.4mm
Ammunition type
Bagged APC and HC shells
Weight of projectile 2240 lbs
1016 kg
Velocity 2520 feet per second
768 meters per second
Maximum elevation       30 degrees
Range 35,000 yards
32,000 meters
Firing cycle 40 seconds
Penetration
18.9" at 12,000 yards
48 cm at 11,000 m


This weapon was used on the Colorados. It was designed in great secrecy as "Type Gun, 45 calibres" and first test fired in August 1914. The Bureau of Ordnance was proud of its design, believing the only rival was the German 15"/45 gun and claiming that the U.S. gun "far exceeds it in power and energy per ton of gun. The Bureau believes our gun to be the most powerful in existence" (quoted by Friedman 1985). However, the other major naval powers had been doing their own highly secret development of new weapons, and the Japanese tested a comparable 16" weapon at about the same time and put it in service slightly sooner.

References

Campbell (1985)

Friedman (1978, 1985)
