Griffon Aircraft Engine

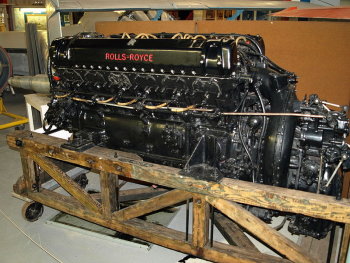

Photograph of Griffon aircraft engine

Wikimedia Commons

The Rolls-Royce Griffon was a liquid-cooled inline vee aircraft engine with twelve cylinders. It was originally intended to be a scaled-up Merlin for use in naval torpedo bombers. It had 6" (15.2cm) cylinders and a 6.6" (16.8cm) stroke for a displacement of 2239 cubic inches (36.69 liters) and was a good engine, but never achieved the same power per unit weight as the ever-improving Merlin.

Aircraft using this engine included the Firefly and later versions of the Spitfire.

Model
Horsepower
Wattage
IIB
1735 hp 1294 kW
Mk 65
2050 hp
1529 kW

References
Gunston (2006)
