ASD Airborne Radar

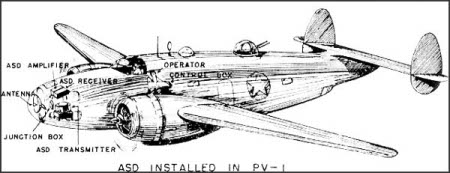

Diagram of ASD airborne radar
Naval Historical Center


Specifications:


Wavelength
3 cm
Power 10 kW
Range 25 miles (40km) against 5000 ton ship
Scope
B scope
Weight
300 lbs
Production

3400 ASD sets from 1943-6 to 1944-44

924 ASD-1 (AN/APS-3) sets from 1943-8 to 1944-12

1396 AN/APS-3A sets from 1943-10 to 1945-5


ASD began with a proposal to develop a 3-cm surface search radar for the TBF Avenger. Development was slow due to the difficulty of installing a long waveguide to the antenna nacelle, and the set ended up being used on the PV-1 Ventura. It proved somewhat unreliable.

Both pilot and bombardier were supplied with a B scope.


References

Guerlac (1987)
