1TM Class, Japanese Tankers

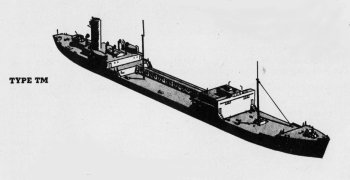

Diagram of 1TM class tanker

ONI-208J-S3



Specifications:


Displacement 6400 gross register tons
10,425 deadweight tons
Dimensions 416'0" by 53'6" by 24'1"
126.80m by 16.31m by 7.34m
Maximum speed       15 knots
Machinery
Turbine
Range 7000 nautical miles (11,000 km) at 12.5 knots


The 1TMs were standard tankers. The design was developed by the Ministry of Communications, with assistance from the Navy Ministry, early in 1942, and was based on uniform specifications adopted by several yards prior to the war. They were not significantly different from peacetime designs developed in the 1930s and were intended for economical use after the war.


Production Schedule:

Year Units Completed

1942

6
1943
26
1944
0
1945
0



References:

Heal (2003)

Jentschura, Jung, and Mickel (1977)

ONI-208J-S3 (1945-1; accessed 2012-11-30)
