1TL Class, Japanese Tankers

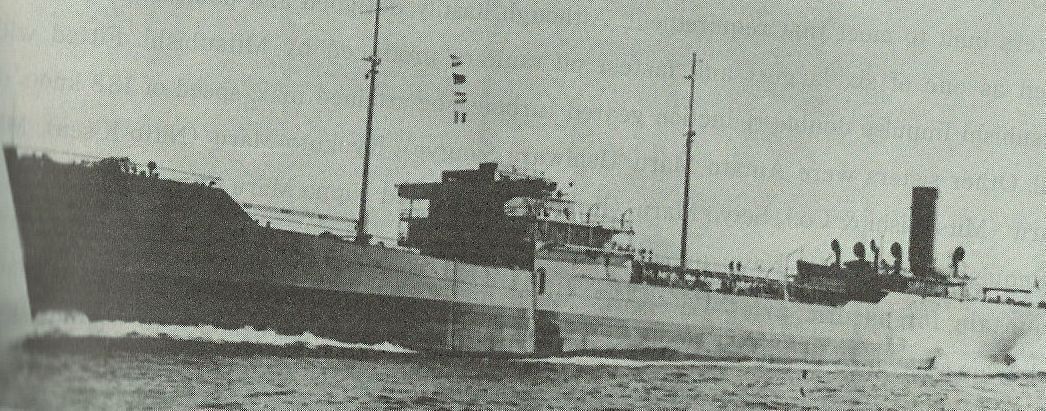

Photograph of 1TL tanker

CombinedFleet.com

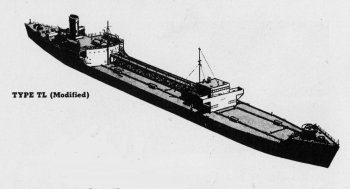

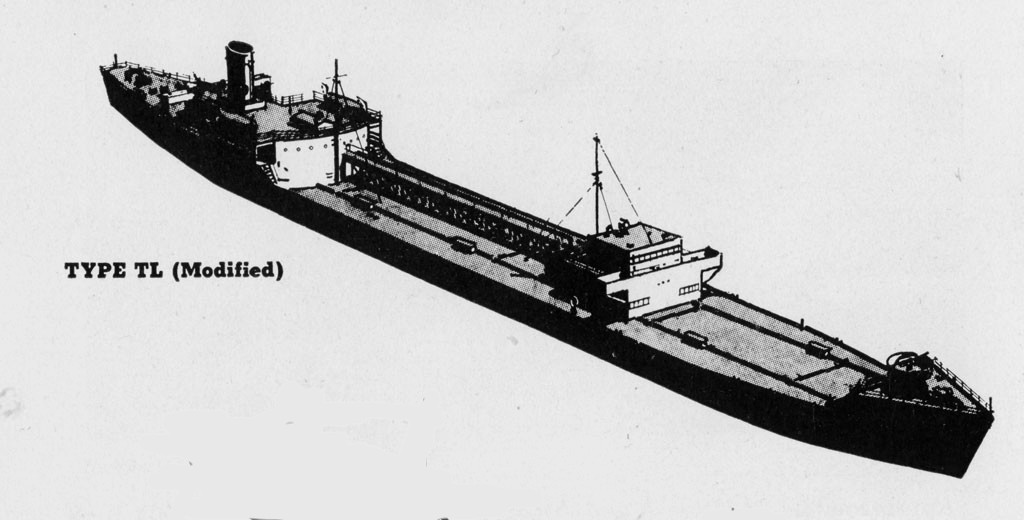

Diagram of 2TL class tanker

ONI-208J-S3


Specifications:


Tonnage 9977 gross register tons
15,600 deadweight tons
Dimensions 526'7" by 65'7" by 29'10"
160.50m by 20.00m by 9.09m
Maximum speed       18.5 knots
Machinery
1-shaft geared turbine (8600 shp)
2 boilers
Range 10,000 nautical miles (16,000 km) at 15 knots
Capacity
100,600 barrels
13,700 tons


The 1TLs were not significantly different from peacetime designs and were intended for economical use after the war. The design was standardized by the Ministry of Communications, with assistance from the Navy Ministry, early in 1942, and was based on uniform specifications adopted by several yards prior to the war. They were three knots faster than their prewar Allied counterparts and had greater capacity.

Two units were converted to merchant/escort carriers.


Production Schedule:

Year Units Completed

1942

0
1943
14
1944
6
1945
3


References:

Chesneau (1992)

CombinedFleet.com (accessed 2014-12-31)

Heal (2003)

Jentschura, Jung, and Mickel (1977)
