1K Class, Japanese Cargo Ships

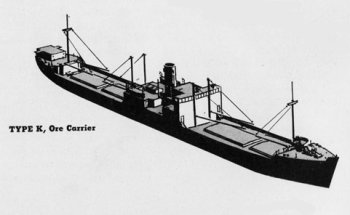

Diagram of 1K class ore carrier

ONI-208J-S3



Specifications:


Tonnage 5244 gross register tons
6433 deadweight tons
Dimensions 416'1" by 54'2" by 24'7"
126.82m by 16.51m by 7.49m
Maximum speed       12 knots
Machinery
Coal-fired reciprocating
Range 8700 nautical miles (14,000 km) at 10 knots


The 1Ks were designed as ore carriers, with strengthened hulls and long welldecks fore and aft of a central island. The design was standardized by the Ministry of Communications, with assistance from the Navy Ministry, early in 1942, and was based on uniform specifications adopted by several yards prior to the war. They were not significantly different from peacetime designs and were intended for economical use after the war.


Production Schedule:

Year Units Completed

1942

12
1943
20
1944
0
1945
0


References:

Heal (2003)

Jentschura, Jung, and Mickel (1977)

ONI-208J-S3 (1945-1; accessed 2012-11-30)
