Elizabeth C. Stanton Class, U.S. Transports

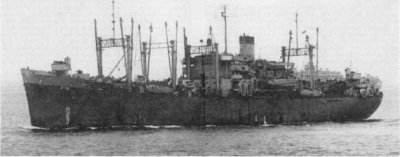

Photograph of Elizabeth C. Stanton class transport

DANFS

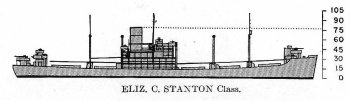

Schematic diagram of Elizabeth C. Stanton class transport

ONI 222


Specifications:


Tonnage 7980 tons standard displacement
Dimensions 492' by 69'6" by 21'1"
149.96m by 21.18m by 6.43m
Maximum speed       16.5 knots
Complement 369
Armament 4 3"/50 AA guns
2x2, 2x1 40mm Bofors AA guns
8x2 20mm Oerlikon AA guns
Machinery
1-shaft General Electric geared turbine (8500 shp)
2 Foster-Wheeler boilers
Bunkerage
3900 tons
Passengers 2095
Cargo
600 tons
154,798 cubic feet (4384 m3)


The Elizabeth C. Stantons were completed from 1940 to the end of the war. They were Maritime Commission standard C-3 Cargo merchants converted to troop transports, which did not make for particularly comfortable troop compartments. Still, they were large and fast with good range, with a maximum boom capacity of 30 tons.


Units in the Pacific:

Florence Nightingale arrived 1944-12-25
Lyon arrived 1944-12-31
Anne Arundel arrived 1945-1
Elizabeth C. Stanton       arrived 1945-1-15


References

DANFS

NavSource.org (accessed 2012-2-8)
