Porpoise Class, U.S. Submarines

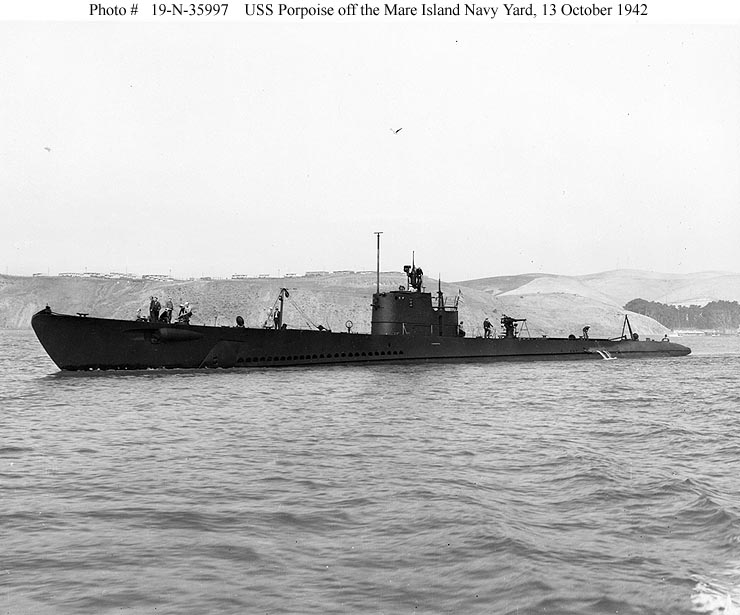

Photograph of Porpose-class submarine

National Archives #19-N-35997

Specifications:

Tonnage 1310 tons standard displacement
1934 tons submerged
Dimensions 301' by 24'9" by 12'10"
91.7m by 7.54m by 3.91m
Maximum speed       18 knots surfaced
8 knots submerged
Maximum dive
250 feet
76 meters
Complement 55
Armament 4 21" bow/2 21" stern torpedo tubes (16 torpedoes)
1 3"/50 AA gun
Machinery
1-shaft diesel-electric (4300 shp)
Bunkerage 300 tons diesel oil
Range 11,000 nautical miles (20,400 km) at 10 knots surfaced
50 nautical miles (90 km) at 5 knots submerged
Cargo 47 tons
Modifications
1942: Engines replaced and two external forward torpedo tubes added.


The Porpoises were completed in 1935-1937 as the first boats of the P program. They represented a trend away from the cruiser submarine concept towards smaller, handier boats. However, they still had atrocious dive times, though they were capable of diving deep and were quite habitable (for submarines.)

The hulls were essentially enlarged Cachalots with more room in the engine spaces to accommodate two more generator engines. They were the last U.S. submarines to use full double-hull construction; all later submarines would use partial double-hull construction. The machinery was the first pure diesel-electric installation in the U.S. submarine force and suffered from some serious teething problems, including motors that flashed over at full voltage, so that the engines could not be run at full power until the motors were rebuilt or replaced. The boats were also the first equipped with the so-called poppet valve, or bubble eliminator, a device that vented the torpedo tubes into a special tank and thereby prevented the escape of a large, highly visible bubble of air whenever a torpedo was launched.

Both ships were transferred to the East Coast for training duty in late 1943.

Units in the Pacific:

Porpoise

Olongapo

Withdrawn 1943-9

Pike

Mariveles

Withdrawn 1943-9-28


References

Alden (1979)

DANFS

Friedman (1995)

Worth (2001)
