| Wavelength | 200 cm |
| Pulse Width | 10 microsecond |
| Pulse Repetition Frequency
|
500 Hz |
| Power | 10 kW |
| Range | 30-60 nautical miles (50-100 km) aircraft |
| Antenna |
Transmitter: vertical dipole Receiver: Yagi mattress |
| Weight |
240 lb 110 kg |
| Production: | About 1000 sets were produced from 1943-3 |

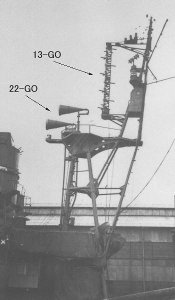

Originally intended as a portable ground-based radar, the Japanese Type 13 radar was
installed on ships and submarines as well as shore. It was also known as the Mark 1 Model 3 Type 3.
Sources conflict, but there are some indications that some ship and
shore installations may have used two dipole arrays in place of the
vertical dipole and Yagi mattress antennas.
