K-VII Class, Dutch Submarines

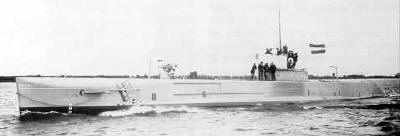

Photograph of K-VII class submarine

DutchSubmarines.com. Fair use may apply.


Specifications:


Tonnage

560 tons standard displacement

Dimensions

188' by 18'5" by 12'7"

57.3m by 5.6m by 38.4m

Maximum speed

13.5 knots surfaced

8 knots submerged

Dive
to 130 feet
to 40 m

Complement

31

Armament

6 17.7" (45cm) torpedo tubes (12 torpedoes)

1 3"/50 AA gun

1 0.50 machine gun

Machinery
2-shaft Sulzer diesel (1200 apk) or electric (400 apk)

Range

3500 nautical miles (6500km) at 11 knots surfaced

25 nautical miles (46 km) at 8 knots submerged


The K-VIIs were built before 1922, and only one was still in service at the beginning of the war (the K-VII at Surabaya.) These ships featured four internal tubes and two traversing external tubes for obsolete 17.7" torpedoes. However, they pointed to a future of successful Dutch submarine designs.

K-VII was sunk on 18 February 1942 by aircraft at Surabaya.

References

DutchSubmarines.com (accessed 2009-12-18)

Worth (2001)
