Kennebec Class, U.S. Fleet Oilers

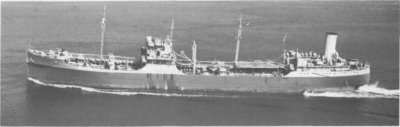

Photograph of USS Kennebec

U.S. Navy. Via Navsource.org

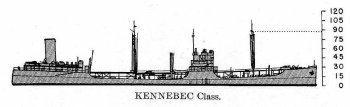

Schematic diagram of Kennebic class fleet oiler

ONI 222


Specifications:


Tonnage 6013 tons light
21,077 tons fully loaded
Dimensions 501'5" by 68' by 30'2"
152.8m by 20.7m by 9.2m
Maximum speed       16.5 knots
Complement 214
Armament 1 5"/38 dual purpose guns
4 3"/50 AA guns
4x2 40mm Bofors AA guns
4x2 20mm Oerlikon AA guns
Machinery
1-shaft Westinghouse geared turbine (12,000 shp)
2 Foster-Wheeler "P" boilers
Bunkerage
1550 tons
Capacity 129,000 barrels


The Kennebecs were completed for Socony-Vacuum Oil Company from 1941 as Maritime Commission standard T2-SO tankers. They were based on a successful civilian design used in the Beaumont Canal in Texas, but with Navy subsidies for much more powerful machinery, to permit them to operate as fleet oilers in the event of war. All were immediately taken over by the U.S. Navy when war broke out in the Pacific.

The ships were equipped with eight center and sixteen wing tanks, of which several were modified during navalization to carry gasoline, diesel fuel, and lubricating oil. They had three main cargo pumps, each with a capacity of 1900 gallons per minute (7200 liters per minute). This allowed the vessel to unload in about 16 hours. There were also three stripping pumps with a capacity of 400 gallons per minute (1500 liters per minute).

None were lost in the Pacific.


Units in the Pacific:

Kankakee
Arrived 1942-6
Lackawanna
Arrived 1942-8
Neosho
Completed 1942-9-19 (San Francisco)
Merrimack
Arrived 1944-10
Winooski
Arrived 1944-10-22
Kennebec
Arrived 1945-7


References

DANFS
Navsource.org (accessed 2009-2-19)
Wildenberg (1996)
