Patoka Class, U.S. Oilers


Photograph of Patoka-class fleet oiler

Mare Island Naval Shipyard #2742-43

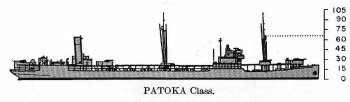

Schematic diagram of Patoka class oiler

ONI 222


Specifications:


Displacement 5400 tons light
16,800 tons fully loaded
Dimensions 477' by 60' by 29'
145.6m by 18.3m by 8.8m
Maximum speed       10.5 knots
Complement 90
Armament 2 5"/38 dual-purpose guns
4x2 40mm Bofors AA guns
4x2 20mm Oerlikon AA guns
Machinery
1-shaft Newport News quadruple expansion reciprocating (2900 shp)
4 Babcock & Wilcox boilers
Bunkerage 11,100 tons fuel oil


The Patokas were ordered for the Navy by the U.S. Shipping Board in the fall of 1918, when it was thought the First World War would continue for another year. They were completed in 1919-1922. In some ways they were a step backwards from the Kanawhas, being built to roughly the same standards as the best commercial tankers of the time.

They were quite elderly by the start of the war, and were usually not equipped for underway replenishment, since their low speed made it impossible for them to keep up with a task force.


Units in the Pacific:

Tippecanoe

San Pedro

Ramapo

Pearl Harbor

Sepulga

en route Oahu from West Coast

Trinity

Cavite

Rapidan

Arrived 1944-3-19

Salinas

Arrived 1944-3-19


References

DANFS

Navsource.org (accessed 19 January 2007)
Wildenberg (1996)
