1C Class, Japanese Cargo Ships

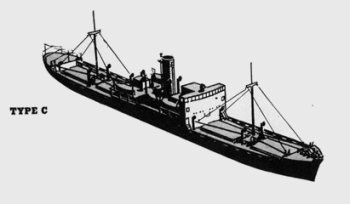

Diagram of 1C class cargo ship

ONI-208J-S3


Specifications:


Tonnage 2700 gross register tons
4476 deadweight tons
Dimensions 321'5" by 44'1" by 20'10"
97.97m by 13.43m by 6.35m
Maximum speed       14 knots
Machinery 1-shaft coal-fired reciprocating engines
Range 5800 nautical miles (9300 km) at 11 knots


The 1Cs were standardized cargo vessels. The design was standardized by the Ministry of Communications, with assistance from the Navy Ministry, early in 1942, and was based on uniform specifications adopted by several yards prior to the war. They were not significantly different from peacetime designs, with machinery admidships, and were intended for economical use after the war.

The ships used coal-fired reciprocating engines and had four deck hatches and double bottoms. Accomodations and bridge were in a single deckhouse amidships.


Production Schedule:

Year Units Completed

1942

10
1943
34
1944
10


References:

Heal (2003)

Jentschura, Jung, and Mickel (1977)

ONI-208J-S3 (1945-1; accessed 2012-11-30)
