1D Class, Japanese Cargo Ships

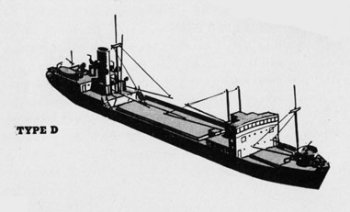

Diagram of 1D class cargo ship

ONI-208J-S3



Specifications:


Tonnage 1900 gross register tons
2850 deadweight tons
Dimensions 285'8" by 40'0" by 20'4"
87.1m by 12.19m by 6.20m
Maximum speed       12.5 knots
Machinery
Coal-fired reciprocating
Range 3800 nautical miles (6100 km) at 10 knots


The 1Ds were standardized cargo vessels. The design was standardized by the Ministry of Communications, with assistance from the Navy Ministry, early in 1942, and was based on uniform specifications adopted by several yards prior to the war. The 1Ds were not significantly different from peacetime designs and were intended for economical use after the war.

The ships used coal-fired reciprocating engines and had two hatches located forward and aft of the deckhouse.


Production Schedule:

Year Units Completed

1942

7
1943
27
1944
6


References:

Heal (2003)

Jentschura, Jung, and Mickel (1977)

ONI-208J-S3 (1945-1; accessed 2012-11-30)
