Atlanta Class, U.S. Antiaircraft Cruisers

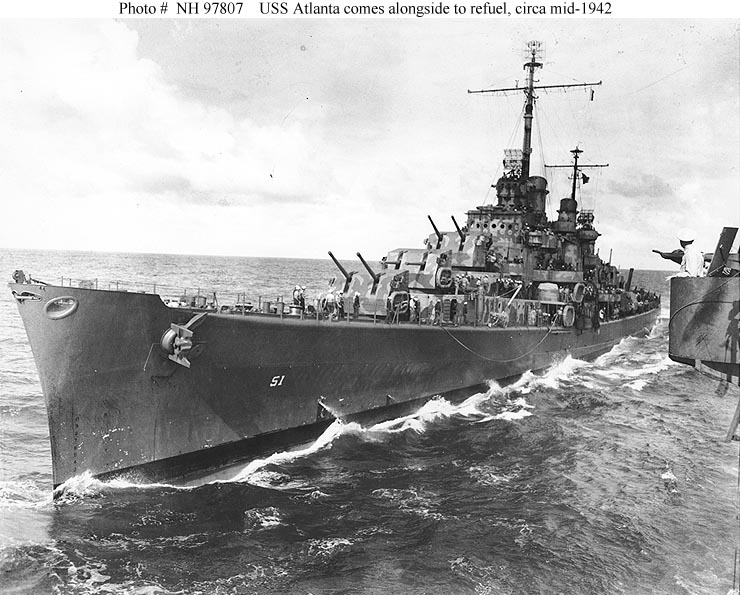

Photograph of USS Atlanta

Naval Historical Center #NH 97807

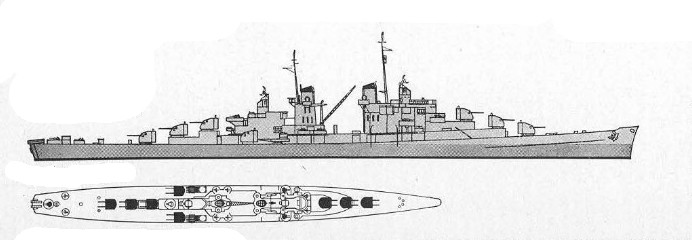

Schematic of USS Atlanta

ONI 54R

Specifications:


Tonnage

6590 tons standard displacement

Dimensions

541'6" by 53'2" by 26'6"
165.05m by 16.21m by 8.08m

Maximum speed

33 knots

Complement

623

Armament

8x2 5"/38 dual-purpose guns
4x4 1.1"/75 AA guns
2x4 21" torpedo tubes
2 depth charge racks

Protection

3.75" (95mm) belt (machinery and after magazine)
1.1" (28mm) belt (forward magazine)
3.75" (95mm) bulkheads
1.25" (32mm) armored deck
1.25" (32mm) turret
2.5" (64mm) enclosed bridge
Machinery
2-shaft Westinghouse geared turbines (75,000 shp)
4 Babcock & Wilcox boilers

Bunkerage

1360 tons fuel oil

Range

8500 nautical miles at 15 knots
Sensors
Sonar, most likely QC
Modifications
1942-10: Removed antisubmarine gear. Added SC, SG, and 2 Mark 12/22 radars
1943-12: Replaced all 1.1" guns with 1x4, 3x2 40mm Bofors AA guns. Added 7x1 20mm Oerlikon AA guns.
1945: Added 2x2 40mm guns.

The Atlantas were completed in 1942-45. They were the first cruisers laid down by the United States Navy since late 1936 and their design was a departure from previous cruiser designs, being influenced by the proposed limitations of the Second London Conference. They retained antisubmarine capability and one of the heaviest torpedo armaments in the fleet long after other American cruisers had discarded them. They had a main armament of relatively light guns, but in great numbers: sixteen of the 5"/38 dual-purpose guns that proved to be the best heavy naval antiaircraft guns produced by any nation in the war. In fact, they resembled nothing so much as armored super destroyers, optimized for escort duty or as destroyer flotilla leaders. However, their crowded fantails aggravated a lack of maneuverability that made them useless as submarine trackers, and they were never employed in the flotilla leader role. Instead, they were employed primarily as antiaircraft escorts.

Their rather meager armor protection (just 9% of displacement) was compensated somewhat by good machinery dispersal and toughness in their design. The belt was an integral part of the hull, which made for considerable strength. However, in the desperate early days of the war, the ships were sometimes employed in surface actions for which they were unsuited. Atlanta absorbed hits by a Long Lance and 49 shells off Guadalcanal yet survived for twelve hours before finally being scuttled. Juneau nearly made it from Guadalcanal to Espiritu Santo with a broken keel, but was torpedoed and suffered a magazine explosion that killed almost all her crew, including five brothers named Sullivan who had enlisted together.

The first four Atlantas lacked stability, and their wing turrets were of limited usefulness. Both problems were remedied in the next four ships, which replaced the wing turrets with twin 40mm mounts. These are listed as a separate class (Oakland class).

They were expensive ships at $27 million apiece.

Units in the Pacific:

Atlanta

arrived 1942-1-24

Sunk by torpedoes and gunfire 1942-11-13 off Savo Island

San Diego

arrived 1942-5-10


San Juan arrived 1942-6-10
Juneau arrived 1942-8-27       Torpedoed by I-26 1942-11-13 while en route Noumea from Guadalcanal

Photo Gallery

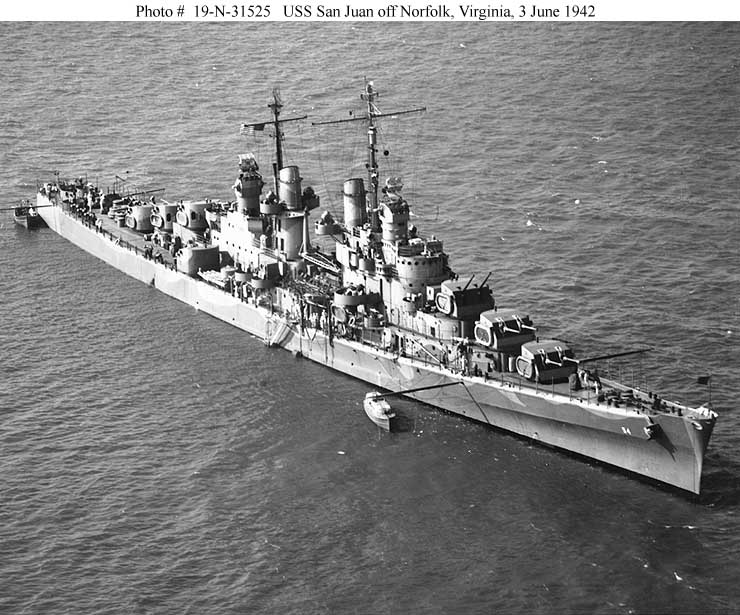

Atlanta class seen from overhead

U.S. Navy

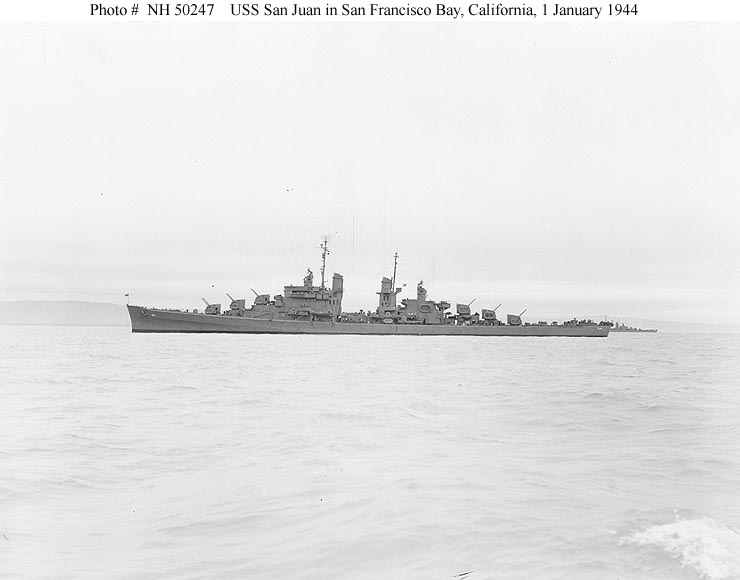

Atlanta class in profile

U.S. Navy

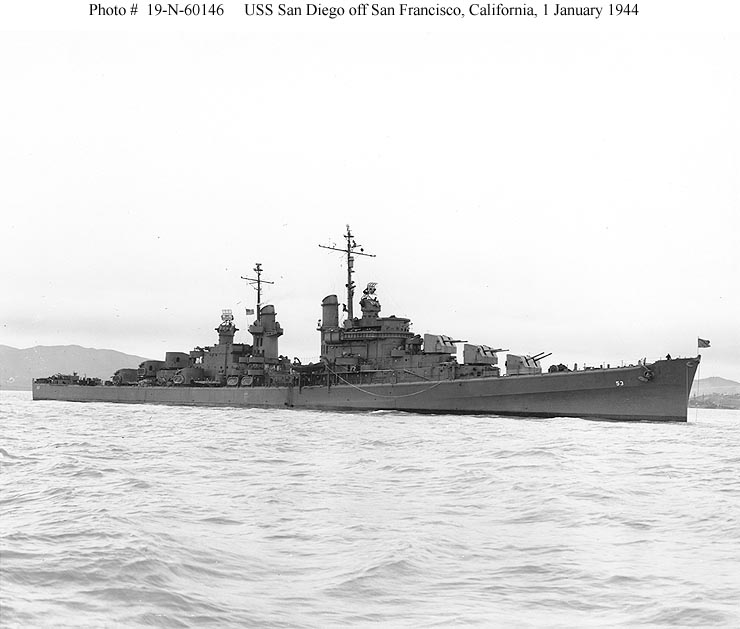

Atlanta class seen from forward quarter

U.S. Navy

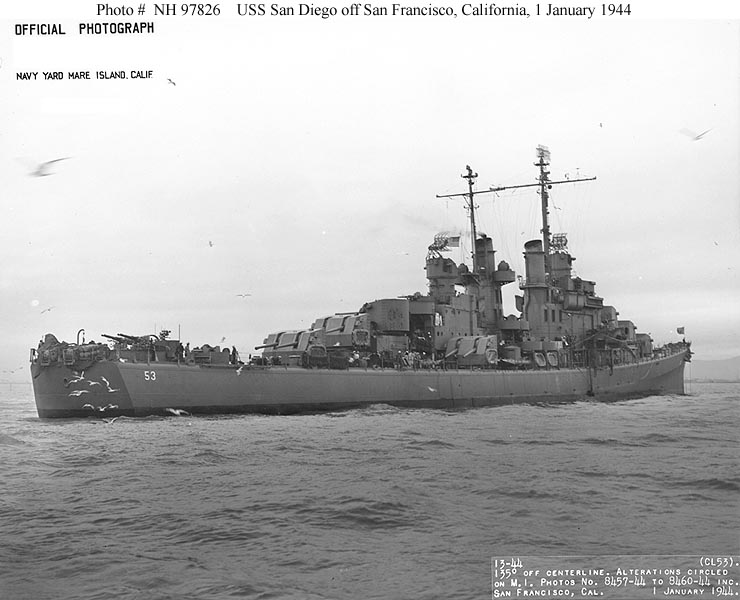

Atlanta class seen from aft quarter

U.S. Navy

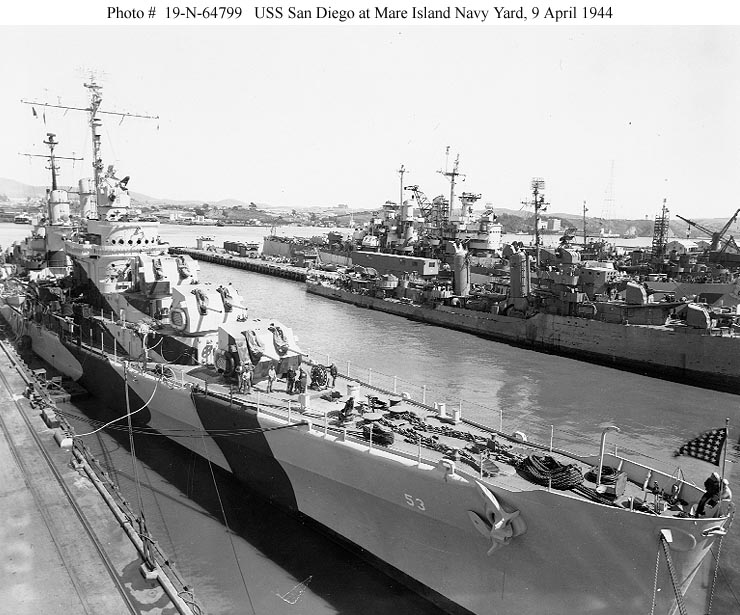

Forward superstructure of Atlanta-class cruiser

U.S. Navy

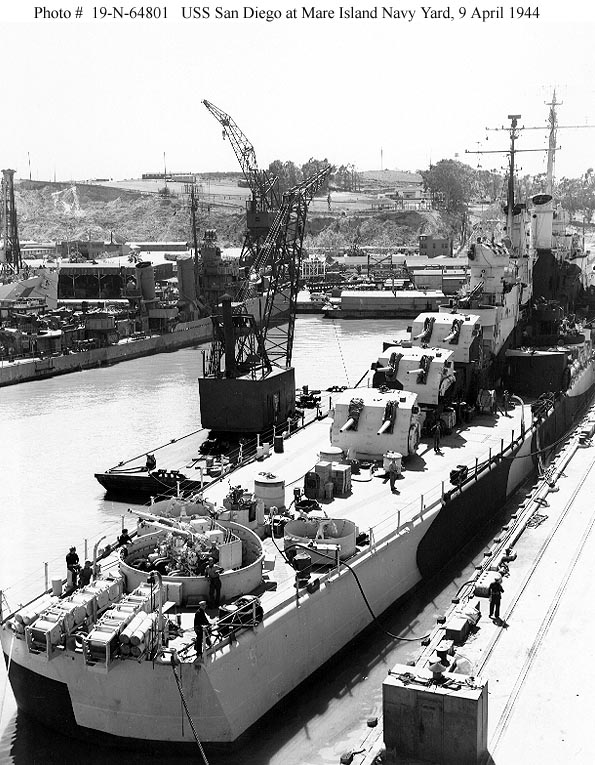

Aft superstructure of Atlanta-class cruiser

U.S. Navy

Atlanta class at general quarters

U.S. Navy


References

DANFS

Gogin (2010; accessed 2012-1-30)

Whitley (1988)

Worth (2001)
