Hiryu, Japanese Fleet Carrier

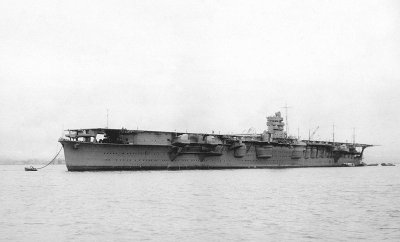

Photograph of
          Hiryu shortly after commissioning

Kure Maritime Museum. Via Wikimedia Commons

Specifications:


Tonnage

17,300 tons standard displacement
20,250 tons fully loaded

Dimensions

682'6" by 72'6" by 25'4"
208.03m by 22.10m by 7.72m

Maximum speed

34.3 knots

Complement

1101

Aircraft

711'6" by 88'7" (216.9m by 27m) flight deck
3 elevators
63 aircraft operational
73 aircraft total

Armament

6x2 5"/40 dual-purpose guns
7x3, 5x2 25mm/60 AA guns

Protection

1.9" (48mm) belt (machinery)
0.5"+0.5" (13mm+13mm) armor deck (machinery)
5.9" (150mm) belt (magazines)View from stern of Soryu during sea trials
2.2" (55mm) deck (magazines)
1.8" (45mm) torpedo holding bulkhead
Machinery
4-shaft geared Kampon turbines with HP, IP, and LP turbines plus cruising turbine (153,000 shp)
8 Kampon Ro boilers

Bunkerage

3700 tons fuel oil
150,000 gallons (568,000 liters) aviation gasoline

Range

7670 nautical miles (`4,200 km) at 18 knots

Hiryu was originally laid down as a sister to Soryu, but by then the Navy was already dissatisfied with some aspects of the design. Hiryu was therefore extensively modified, making her a near-sister at best. Commissioned on 5 July 1939. two years later than the Navy had hoped, she was stronger and more stable than Soryu, had better range and protection, and had a taller island placed on the port side to allow the island to be placed amidships without redesigning the exhaust trunks. The Navy backed away from the extensive use of welding that characterized Soryu, using riveting in all hull areas subject to high loads. Like Soryu, Hiryu was capable of operating a large air group, but lacked adequate underwater protection.

The island on Soryu had proven very cramped, and so the island on Hiryu was brought up another deck level.

Hiryu was part of the Pearl Harbor Attack Force when war broke out in the Pacific.  She was one of four Japanese carriers assigned to the vanguard of the Midway operation, and the only one to escape the first devastating American dive bomber attack, being somewhat to the north of the other three carriers. Her air group succeeded in crippling Yorktown before she herself succumbed to a second American dive bomber attack.

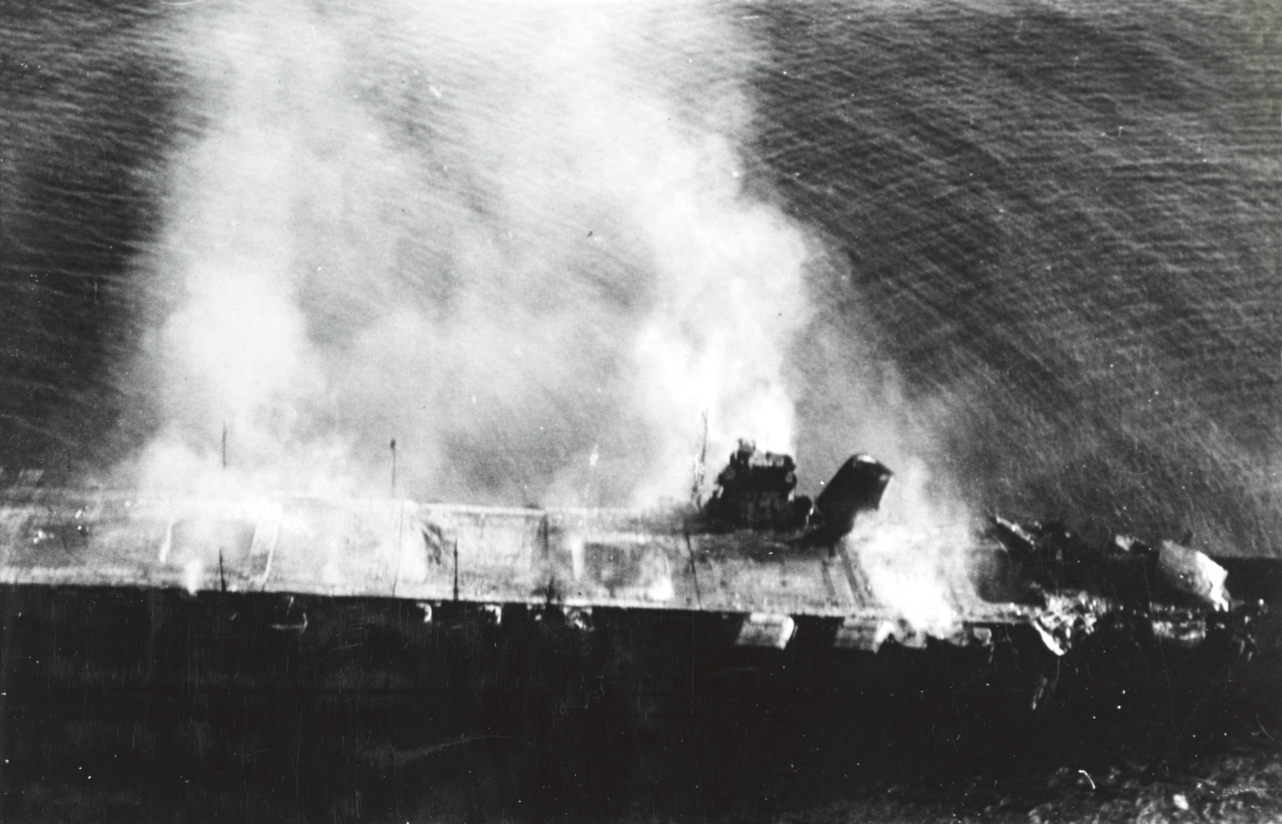

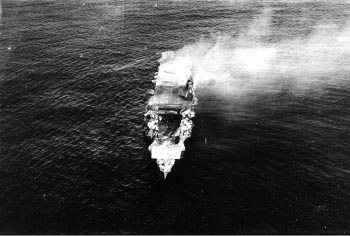

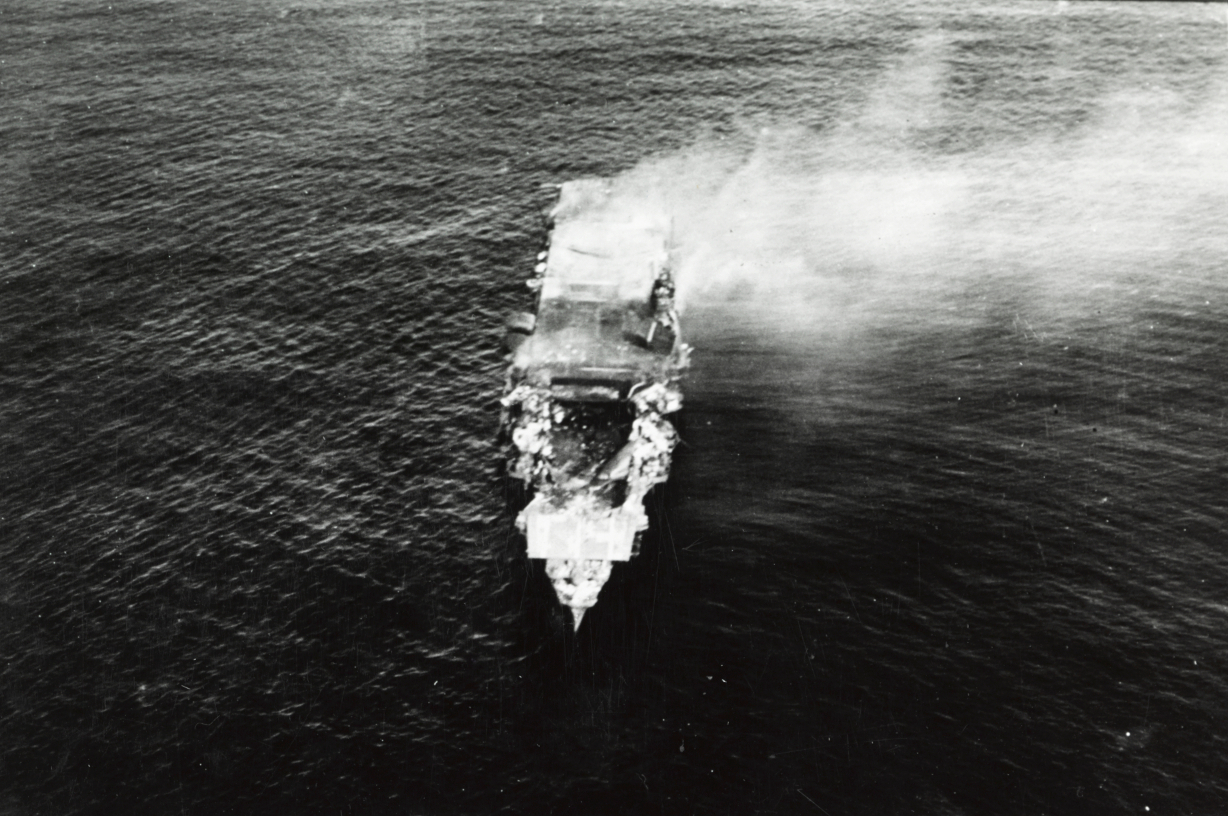

Photograph of Hiryu burning after dive bomber attack at
          Midway

Naval History and Heritage Command #NH 73065

Photo Gallery

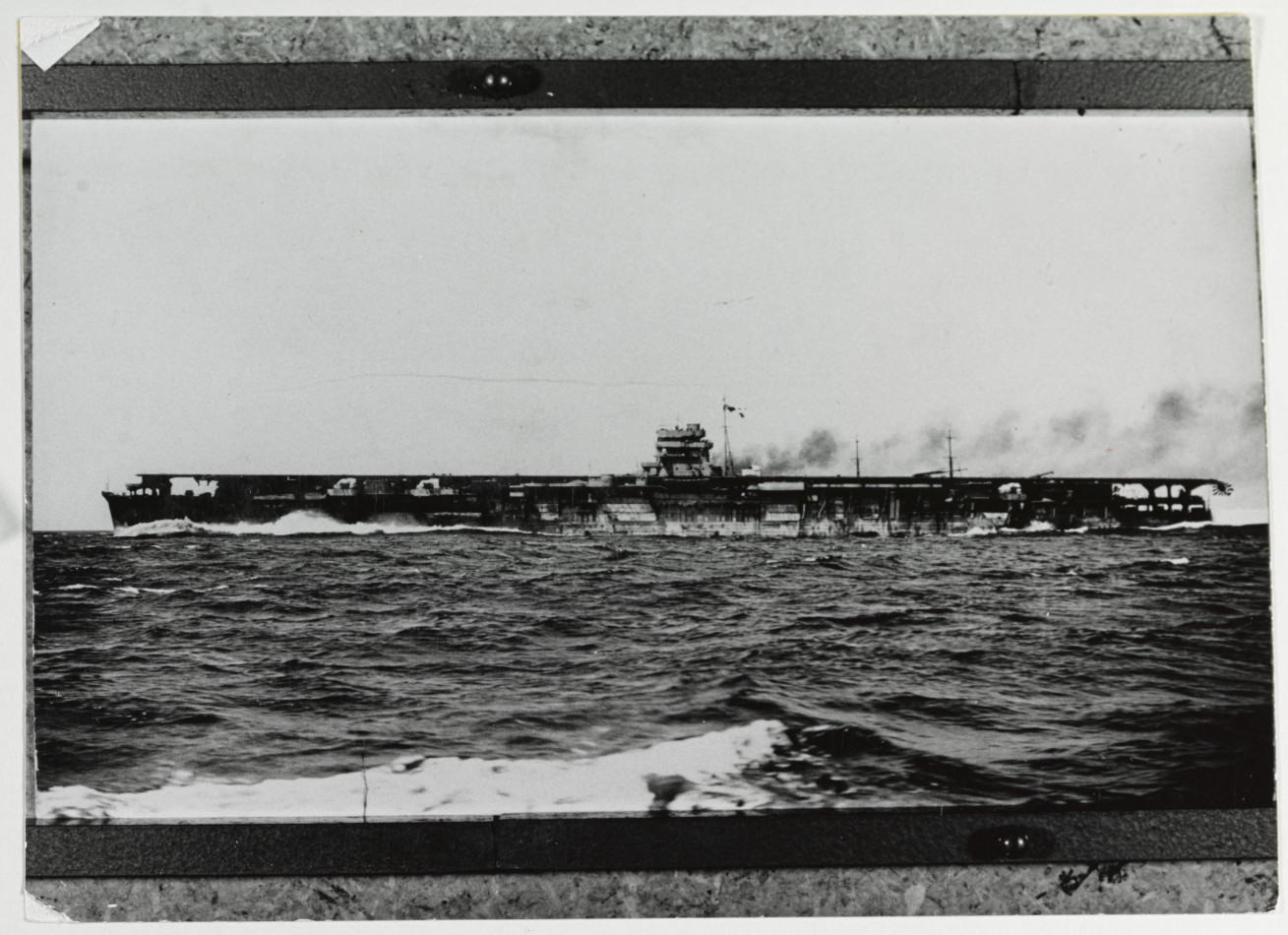

Profile of Hiryu

U.S. Navy

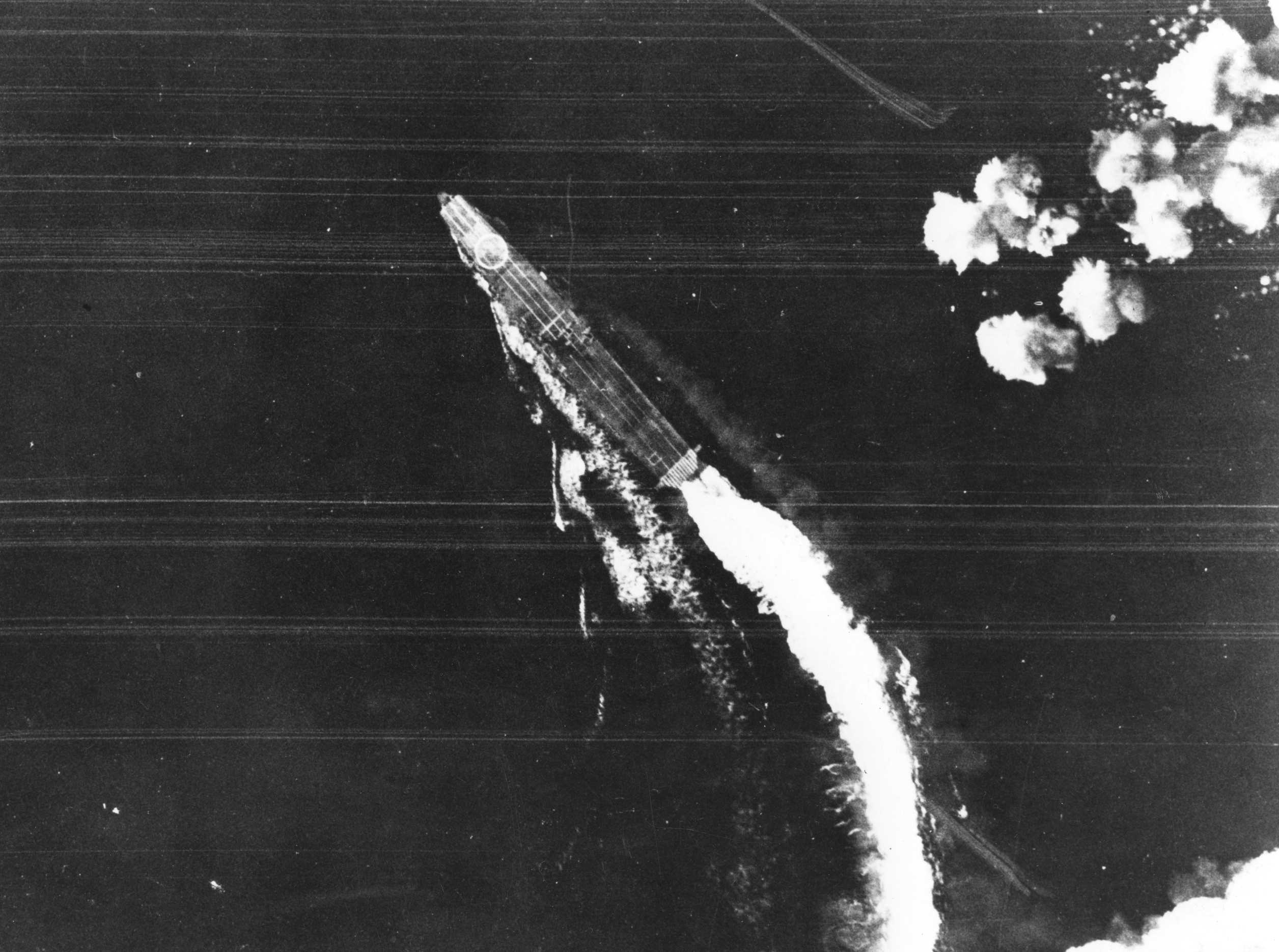

Above view of Hiryu under attack

U.S. Navy

Above view of Hiryu under attack

U.S. Navy


References

Chesneau (1992)

CombinedFleet.com (accessed 2007-12-24)

Gogin (2010; accessed 2012-12-24)

Parshall and Tully (2006)
Peattie (2001)

Skwiot (2015)

Worth (2001)
