KD3 Class, Japanese Submarines

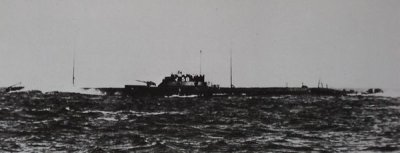

Photograph of KD3-class submarine

Wikipedia Commons


Specifications:


Tonnage 1635 tons standard
1800 tons surfaced
2300 tons submerged
Dimensions 330'1" by 26'2" by 15'10"
100.61m by 7.98m by 4.83m
Maximum speed       20 knots surfaced
8 knots submerged
Dive
to 200 feet
to 60 meters
Complement 60
Armament 1 4.7"/45 dual-purpose gun
1 light machine gun (KD3B group)
8 21" torpedo tubes (16 torpedoes)
Machinery
2-shaft diesel (6800 bhp) or electric (1800 shp)
Bunkerage 230 tons diesel fuel
Range 10,000 nautical miles (19,000 km) at 10 knots surfaced
6130 nautical miles (11,400 km) at 16 knots surfaced
90 nautical miles (170 km) at 3 knots submerged

The KD3s were long-range submarines completed in 1927-1930. They differed from earlier types primarily in having strengthened hulls. There were two groups, the KD3A and KD3B groups, which were very similar except for bow form. They were somewhat dated at the outbreak of war, and most were later relegated to training duties.


Units in the Pacific:

I-53

off Malaya north of Singapore

Relegated to training duty on 1942-3-10 and renamed I-153 on 1942-5-20.

I-54

off Malaya north of Singapore

Relegated to training duty on 1942-3-10 and renumbered I-154 on 1942-5-20.

I-55

off Malaya north of Singapore

Relegated to training duty on 1942-3-10 and renumbered I-155 on 1942-5-20.

I-56

off Malaya north of Singapore

Renumbered I-156 on 1942-5-20 and relegated to training duty on 1942-7-10. Converted to a Kaiten carrier on 1945-4-1.

I-57

off Malaya north of Singapore

Renumbered I-157 on 1942-5-20 and relegated to training duty on 1942-7-10. Converted to a Kaiten carrier on 1945-4-20.

I-58

off Malaya north of Singapore

Renumbered I-158 on 1942-5-20 and relegated to training duty on 1942-7-10. Converted to a Kaiten carrier on 1945-4-20.
I-59 Kobe Renumbered I-159 on 1942-5-20 and relegated to training duty on 1942-7-10. Converted to a Kaiten carrier on 1945-4-20.
I-60 Kobe     Sunk 1942-1-17 in the Sunda Strait by Jupiter


References

Jentschura, Jung, and Mickel (1977)

Worth (2001)
