PB2Y Coronado, U.S. Flying Boat

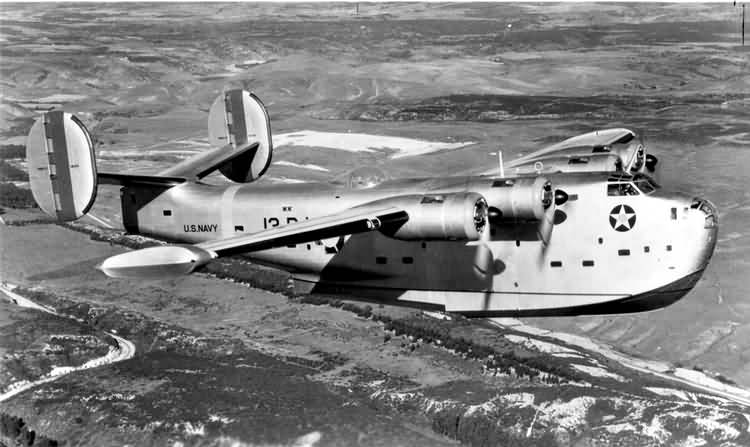

Photograph of PB2Y Coronado in flight

U.S. Navy. Via Wikimedia Commons


Consolidated PB2Y-3 Coronado


Specifications:


Crew 7 to 10
Dimensions 115' by 79'3" by 27'6"
35.05m by 24.16m by 8.38m
Wing area 1780 square feet
165.4 square meters
Weight 40,935-68,000 lbs
18,568-31,000 kg
Maximum speed       213 mph (343 km/h) at 19,500 feet (5900 meters)
199 mph (320 km/h) at sea level
Cruise speed 140 mph
225 km/h
Landing speed 76 mph
122 km/h
Climb rate 9 feet per second
2.7 meters per second
Service ceiling 20,100 feet
6130 meters
Power plant 4 1200 hp (895 kW) Pratt & Whitney R-1830-88 Twin Wasp two-row 14-cylinder radial engines driving three-bladed propellers
Armament 1 twin 0.50 nose turret
1 twin 0.50 dorsal turret
1 twin 0.50 tail turret
2 0.50 flexible waist machine guns
Bomb load
up to 8000 lbs (3600 kg) internal plus 4000 lbs (1800 kg) external, including torpedoes
Range 2310 miles (3720 km) with 4 325lb (147 kg) depth charges
1380 miles (2220 km) with 8000 lbs (3600 kg) bombs
3107 miles (5000 km) ferry
Fuel
1580 gallons (5980 liters) normal
Production 210 PB2Y-3 at Consolidated Aircraft, San Diego from 12/40 to 10/43.
Sensors
Most units had ASV radar.
Variants

Few aircraft have been as extensively modified.

The PB2Y-2 was faster at 255 mph but only a few were produced.

The –3R was demilitarized and used to transport 44 passengers or 16,000 pounds (7000 kilograms) cargo.

The –5 had 60% more fuel.

The –5H was an unarmed air ambulance capable of accommodating 25 stretchers.


The prototype Coronado was the winner of a 1935 Navy design contest, defeating a Consolidated rival. Significant design changes, particularly to the hull form and the tail surfaces, were made to the production model, which was not ordered until March 1939 due to the priority put on the PBY Catalina. By then a supercharged Twin Wasp engine with superior high altitude performance was available.

Though the Coronado was ordered as a patrol flying boat, its range was unremarkable, and most of the production was converted to transport and flying ambulance service. Nimitz had a personal Coronado that proved invaluable for allowing him to work with his staff while en route to various headquarters around the Pacific. The plane was rather sluggish, and pioneered the use of rocket takeoff assistance. Most of the –3s and –5s that were not demilitarized carried ASV radar above the flight deck.

Photo Gallery

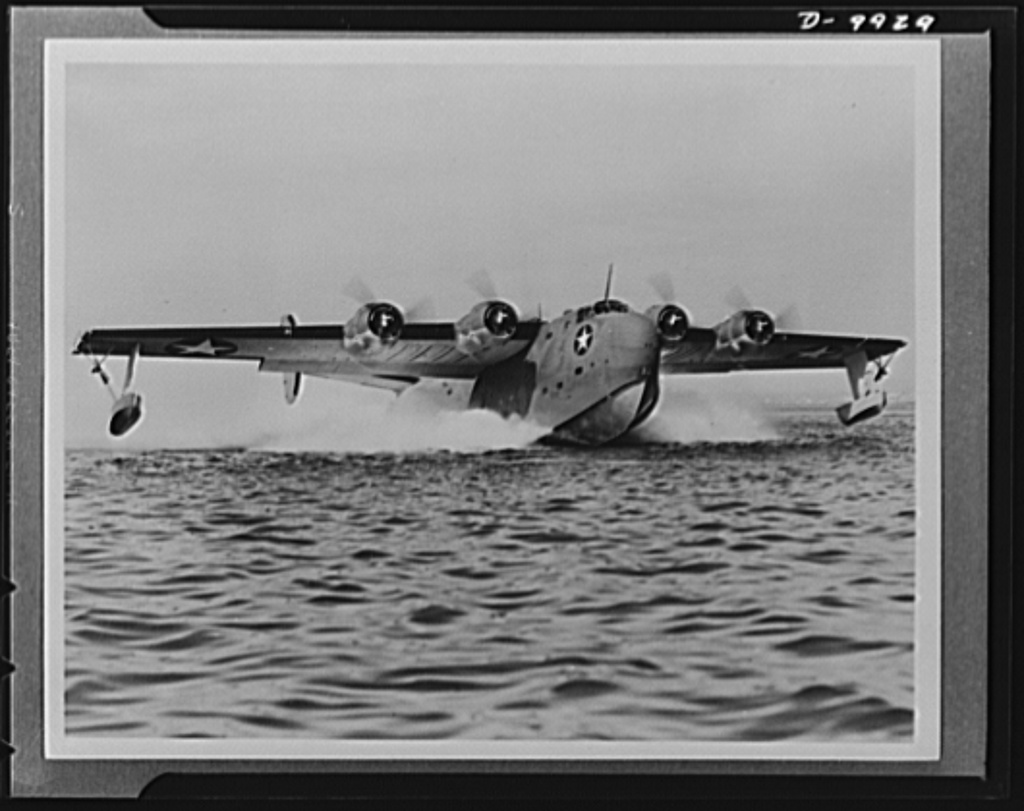

PB2Y preparing to take off

NARA

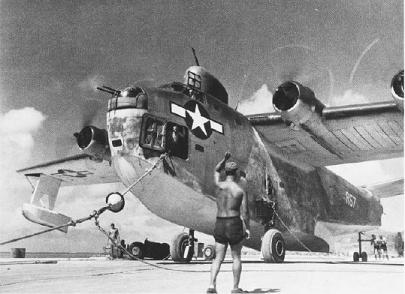

PB2Y preparing to take off

U.S. Navy

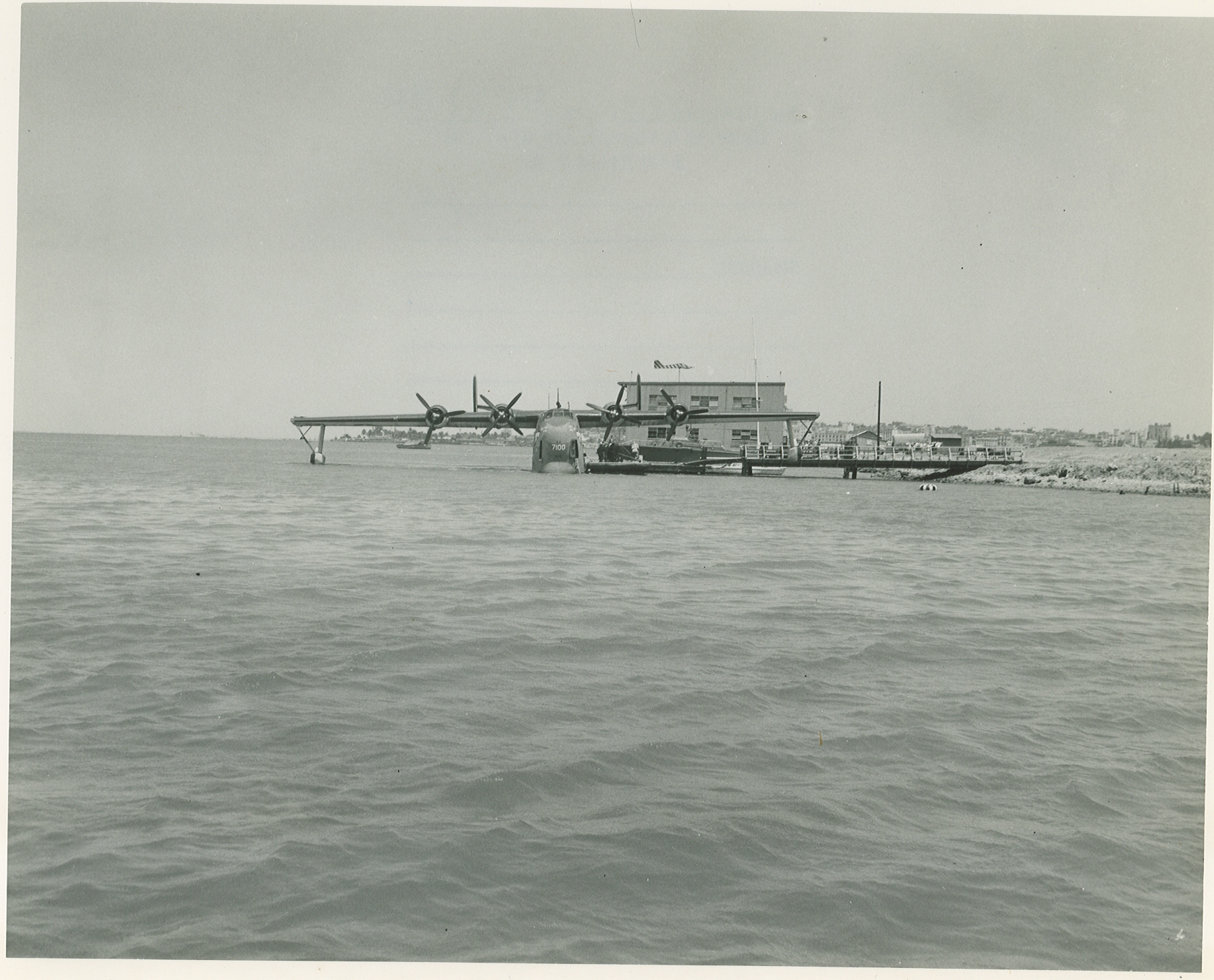

PB2Y front view at pier

U.S. Navy

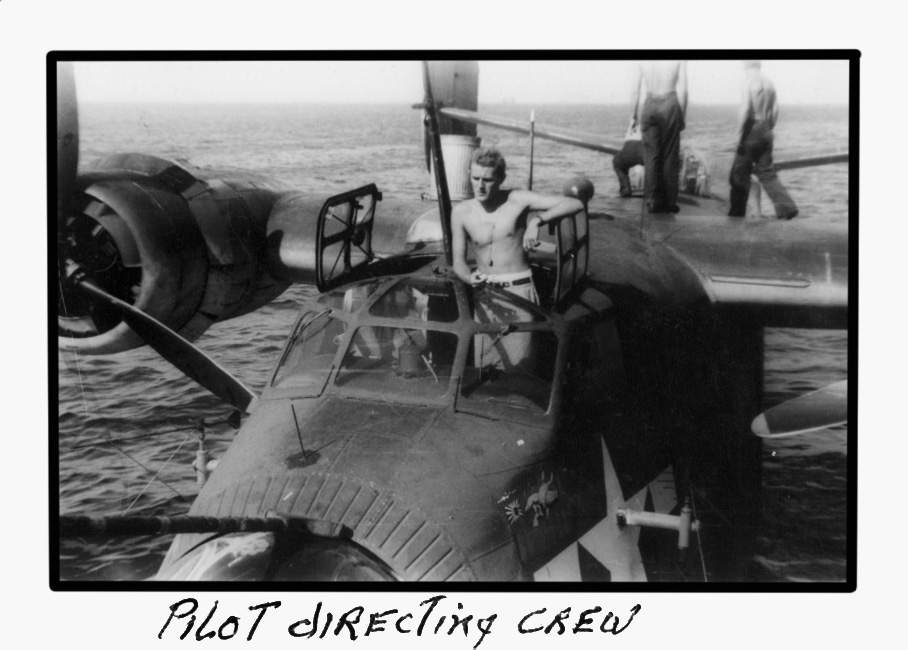

PB2Y front view close up

U.S. Navy

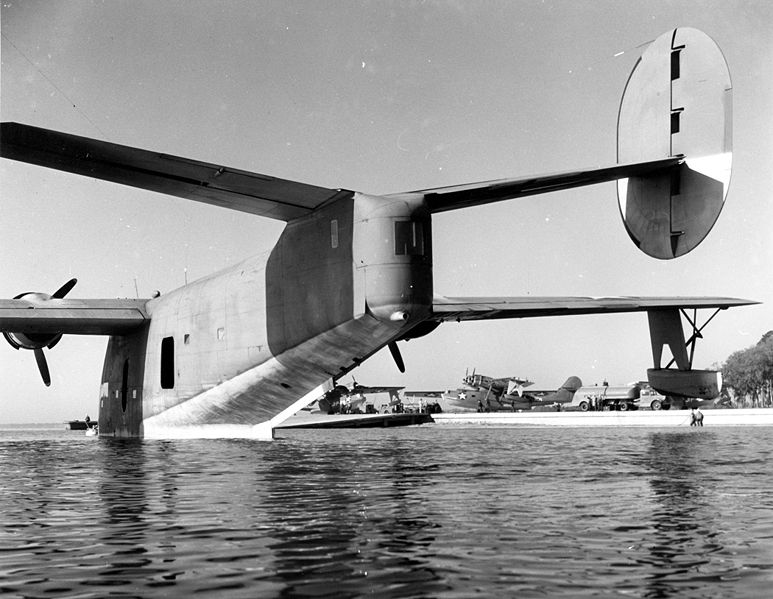

PB2Y rear view at pier

U.S. Navy


References

Gunston (1986)

Wilson (1998)
