PCE-827 Class, U.S. Submarine Chasers

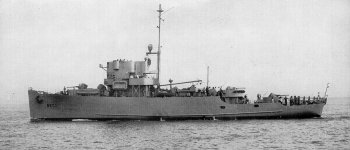

Photograph of PCE-827 class submarine chaser

U.S. Navy. Via NavSource.org

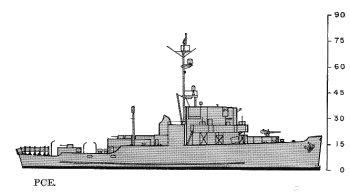

Schematic diagram of PCE-827 class submarine chaser

ONI 222


Specifications:

Tonnage 860 tons standard displacement
Dimensions 184' by 33'1" by 9'5"
56.08m by 10.08m by 2.87m
Maximum speed       15.5 knots
Complement 99
Armament 1 3"/50 AA gun
4 40mm Bofors AA guns
2 20mm Oerlikon AA guns
1 depth charge thrower
Depth charges
Machinery
2-shaft diesel (900 shp)
Bunkerage
123 tons


The PCE-827s were completed in 1942-45.  They were beamy enough for good sea keeping and proved quite valuable as oceanic escorts.

The U.S. built 85 PCE (Patrol Craft Escort) during the war, of which 17 went to Britain for Lend-Lease.

References

Navsource.org

ONI 222 (1945-9-1)

Worth (2001)
