Type C Class, Japanese Escort Vessel

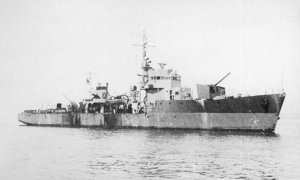

Photograph of Type C escort vessel

Wikimedia Commons


Specifications:


Tonnage 745 tons standard displacement
Dimensions 221'5" by 27'7" by 9'6"
67.49m by 8.26m by 2.90m
Maximum speed       16.5 knots
Complement 136
Armament 4.7"/45 dual-purpose guns
6 25mm AA guns
1 3" A/S mortar
1 depth charge rack, 12 depth charge throwers (total 120 depth charges)
Machinery 2-shaft geared diesel (1900 bhp)
Range 6500 nautical miles (12,000 km) at 14 knots
Sensors
Type 13 radar
Type 22 radar
Type 93 sonar
Modifications
Light AA increased to 12 to 16 25mm guns by the end of the war


The Type C escort vessels were simplified versions of the Ukurus built with the utmost speed and economy, so that they could be completed in just two to three months. A total of 132 units were ordered in late 1943, the first hulls were laid down in September 1943, and the first units were completed in February 1944, with construction continuing to the end of the war.  Electric welding was used extensively in their construction, reducing weight by almost 200 tons, but their inferior machinery limited their speed.

Units were numbered CD-1 through CD-227 using odd numbers only. Even numbers were assigned to the Type D escort vessels.

Production schedule:

Month Units Completed
Losses
1944-3 2 0

1944-4

5

0
1944-5 3 0
1944-6 0 1
1944-7 1 0
1944-8 2 0
1944-9 1 1
1944-10 5 1
1944-11 10 2
1944-12 2 0
1945-1 2 6
1945-2 6 2
1945-3 1 2
1945-4 2 3
1945-5 2 2
1945-6 1 1
1945-7 6 3
1945-8 0 5
