Catskill Class,  U.S. Vehicle Landing Ships

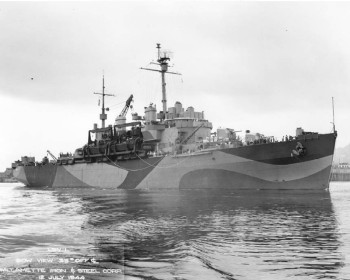

Photograph of Catskill class vehicle landing ship

Naval History and Heritage Command #19-N-69092. Via Navsource.org


Specifications:


Tonnage 5875 tons light
9040 tons fully loaded
Dimensions 455'5" by 60'2" by 20'
138.81m by 18.34m by 6.10m
Maximum speed       20 knots
Complement 400+
Armament 5"/38 dual-purpose guns
4x2 40mm Bofors antiaircraft guns
20x1 20mm Oerlikon AA guns
Machinery
2-shaft General Electric geared turbine (22,000 shp)
4 Combustion Engineering 2-drum boilers
Passengers
868
Modifications
Light antiaircraft upgraded to 16 40mm Bofors AA guns


The Catskills were laid down as Terror class minelayers, but were converted as vehicle landing ships by converting the mine deck to a vehicle deck with a very large ramp at the stern. They carried 44 DUKWS.

The ships were not considered a success, having limited cargo space and a disappointingly small vehicle capacity.

Units in the Pacific:

Catskill
Completed 1944-6-30 (Portland)
Ozark
Completed 1944-9-23 (Portland)


References

Friedman (2002)

Navsource.org (accessed 2011-4-23)
