Windsor Class, U.S. Attack Transports

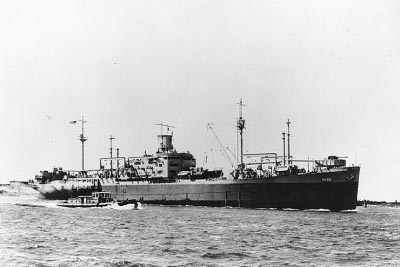

Photograph of USS Windsor

Naval Historical Center #NH 97870

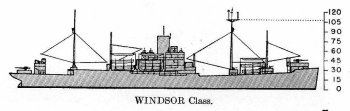

Schematic diagram of Windsor class transport

ONI 222


Specifications:


Tonnage 8276 tons light displacement
13,500 tons fully loaded displacement
Dimensions 492' by 69'6" by 28'6"
150m by 21.2m by 8.7m
Maximum speed       18.5 knots
Complement
507
Armament
2 5"/38 dual purpose gun
2x2 40mm Bofors AA guns
16 20mm Oerlikon AA guns
Machinery
1-shaft General Electric geared turbine (8000 shp)
2 Babcock and Wilcox boilers
Bunkerage
1500 tons fuel oil
29,793 gallons landing craft fuel
Range
16,000 nautical miles (29,600 km) at 15 knots
Capacity
1514 troops
1600 tons or 152,691 cubic feet (4323.7 cubic meter) cargo
Modifications
20mm battery increased to 22 guns by end of war

The Windsors were standard Maritime Commission C3 cargo vessels converted to attack transports (as standard type C3-S-A1.) They were equipped with 3 30-ton, 5 10-ton, and 2 to 3 5-ton booms and carried 4 LCMs, 16 LCVPs, 1 LCPL, and 1 LCPR.

None were lost in the Pacific.

Units in the Pacific:

Windsor
Arrived 1943-12
Leedstown
Arrived 1943-12
Adair
Arrived 1944-8-27
Queens
Arrived 1945-1
Grundy
Arrived 1945-4
Griggs
Arrived 1945-5

References

DANFS

Friedman (2002)
Lane (1951)

NavSource.org (accessed 2009-11-28)
