Admirable Class, U.S. Fleet Minesweepers

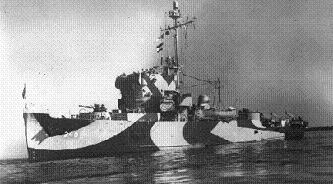

Photograph of Admirable-class minesweeper

U.S. Navy photograph

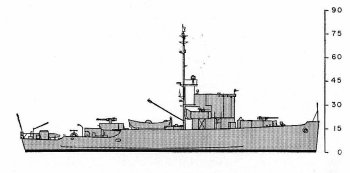

Schematic diagram of Admirable class minesweeper

ONI 222

Specifications:

Tonnage

526 tons standard displacement

Dimensions

184'6" by 33' by 10'
56.2m by 10.1m by 3.0m

Maximum speed

15 knots

Complement

104

Armament

1 3"/50 AA gun
2x2 40mm Bofors AA guns
6 20mm Oerlikon AA guns
2 depth charge throwers
1 Hedgehog
Machinery
2-shaft diesel (3420 shp)
Bunkerage
128 tons
Range
8500 nautical miles at 12 knots
16,000 km at 12 knots
Sensors
SF surface search radar?

The Admirables were completed in 1943-45. They were a simplification of the Auk design meant to facilitate mass production, and 125 were completed during the war. The resulting design had no mine laying capability but retained a significant antisubmarine armament. They were very handy boats with excellent sea-keeping, which made them the basis for the PCE-827 class.

A number of these ships were transferred to the Soviet Union at the Aleutians in 1945 as Lend-Lease.


Units in the Pacific:

Bond Completed 1943-8-30 (Portland) To Russia 1945-8-17
Adopt Arrived 1943-10 To Russia 1945-7-19
Buoyant Completed 1943-10-30 (Portland)
Candid Completed 1943-10-31 (Portland)       To Russia 1945-8-17
Salute Completed 1943-12-4 (Seattle) Mined 1945-6-7 at Brunei Bay
Capable Completed 1943-12-5 (Portland) To Russia 1945-8-16
Captivate Completed 1943-12-13 (Portland) To Russia 1945-8-16
Admirable
Arrived 1944-1 To Russia 1945-7-18
Caravan Completed 1944-1-21 (Portland) To Russia 1945-8-16
Saunter Completed 1944-1-22 (Seattle)
Caution Completed 1944-2-10 (Portland) To Russia 1945-8-16
Change Completed 1944-2-28 (Portland)
Scout Completed 1944-3-3 (Seattle)
Climax Completed 1944-3-24 (Portland)
Scrimmage
Completed 1944-4-4 (Seattle)
Compel Completed 1944-4-8 (Portland)
Concise Completed 1944-4-25 (Portland)
Control Completed 1944-5-1 (Portland)
Scuffle Completed 1944-5-2 (Seattle)
Augury Arrived 1944-5-15 To Russia 1945-7-18
Counsel Completed 1944-5-27 (Portland)
Sentry Completed 1944-5-30 (Seattle)
Signet Completed 1944-6-20 (Seattle)
Serene Completed 1944-6-24 (Seattle)
Skirmish Completed 1944-6-30 (Seattle)
Shelter Completed 1944-7-9 (Seattle)
Barrier Arrived 1944-7-14 To Russia 1945-7-18
Scurry Completed 1944-7-29 (Seattle)
Ransom Completed 1944-8-5 (Alameda)
Bombard Arrived 1944-8-9
Spectacle Completed 1944-8-11 (Seattle)
Garland Completed 1944-8-26 (Seattle)
Specter Completed 1944-8-30 (Seattle)
Staunch Completed 1944-9-9 (Seattle)
Rebel Completed 1944-9-12 (Alameda)
Design Arrived 1944-9-15
Density Arrived 1944-9-16
Strategy Completed 1944-9-22 (Seattle)
Gayety
Completed 1944-9-23 (Seattle)
Strength Completed 1944-9-30 (Seattle)
Success Completed 1944-10-18 (Seattle)
Hazard Completed 1944-10-31 (Seattle)
Device Arrived 1944-11-1
Superior Completed 1944-11-1 (Seattle)
Recruit Completed 1944-11-8 (Alameda)
Execute Completed 1944-11-15 (Seattle)
Hilarity Completed 1944-11-27 (Seattle)
Facility Completed 1944-11-29 (Seattle)
Fancy Completed 1944-12-13 (Seattle)
Diploma Arrived 1944-12-28
Fixity Completed 1944-12-29 (Seattle)
Quest Arrived 1945-1-11
Method Arrived 1945-1-24 To Russia 1945-5-21
Notable Arrived 1945-2
Rampart Arrived 1945-2-2 To Russia 1945-5-20
Measure Arrived 1945-2-11 To Russia 1945-5-21
Nucleus Arrived 1945-2-13 To Russia 1945-5-21
Indicative Arrived 1945-2-15 To Russia 1945-4-5; mined 1945-5 off North Korea
Dunlin Completed 1945-2-16 (Portland)
Reform Completed 1945-2-28 (Alameda)
Peril Arrived 1945-3-10 To Russia 1945-5-22
Dour Arrived 1945-3-16
Inaugural Arrived 1945-3-21
Eager Arrived 1945-3-23
Pivot Arrived 1945-4-1
Inflict Arrived 1945-4-7
Pledge Arrived 1945-4-7
Nimble Arrived 1945-4-8
Refresh Completed 1945-4-10 (Alameda)
Pirate Arrived 1945-4-11
Opponent Arrived 1945-5-23
Gadwall Completed 1945-6-23 (Portland)
Deft Arrived 1945-6-29
Implicit Arrived 1945-7-12
Improve Arrived 1945-7-12
Incessant Arrived 1945-7-12

Photo Gallery

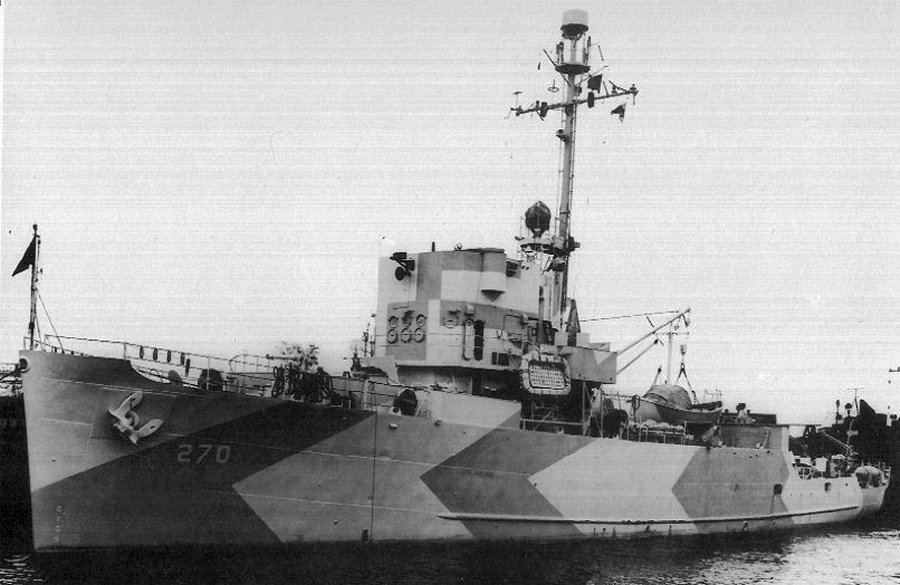

Admirable class forward view

U.S.Navy

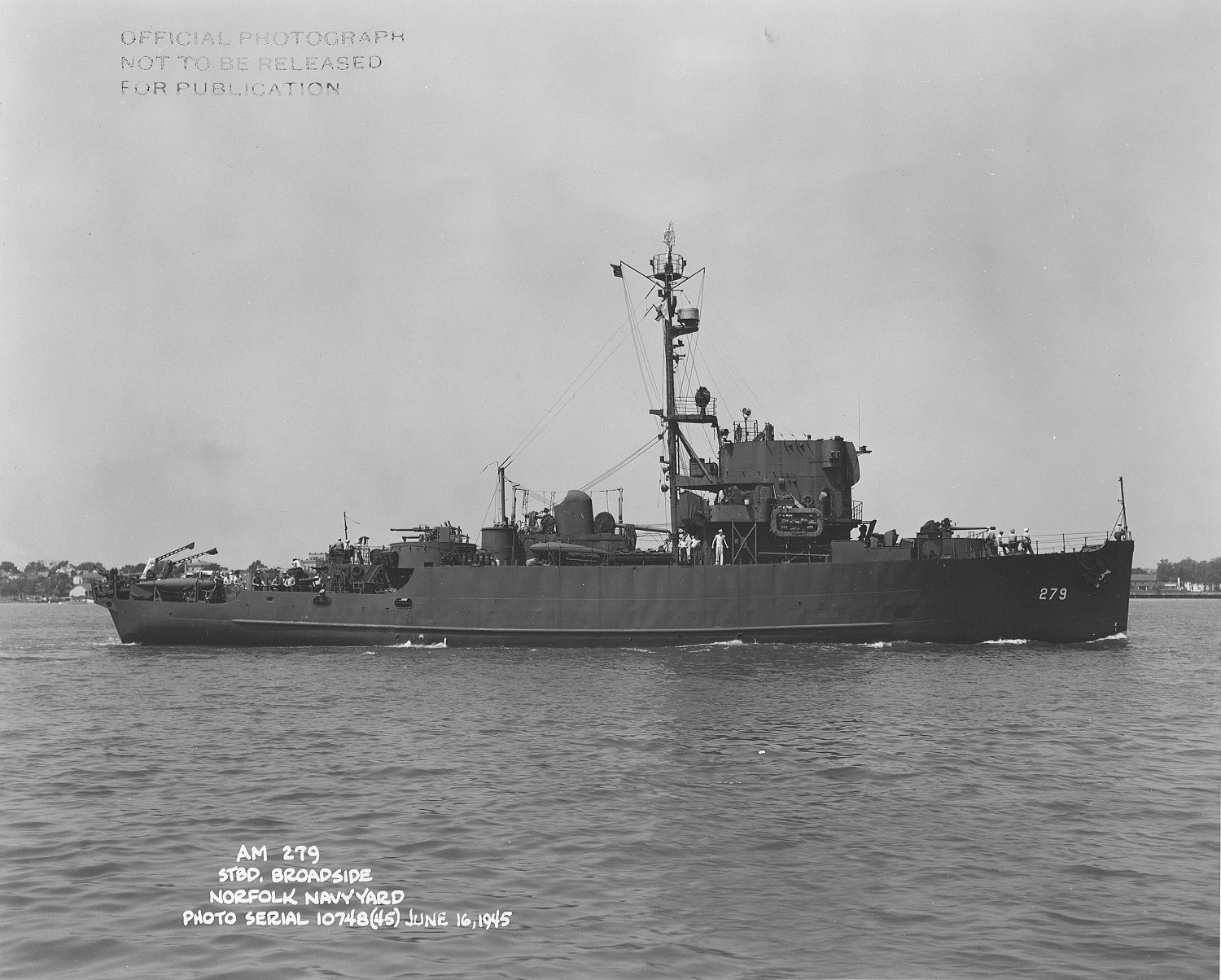

Admirable class side view

U.S.Navy

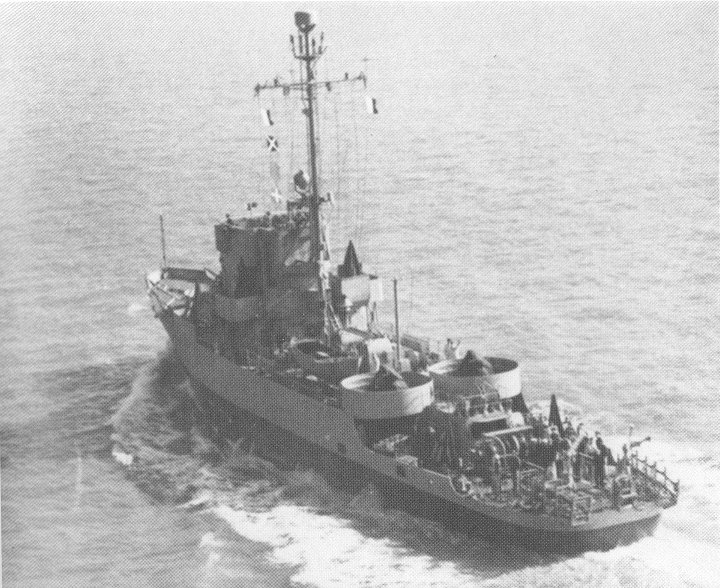

Admirable class seen from aft

U.S.Navy

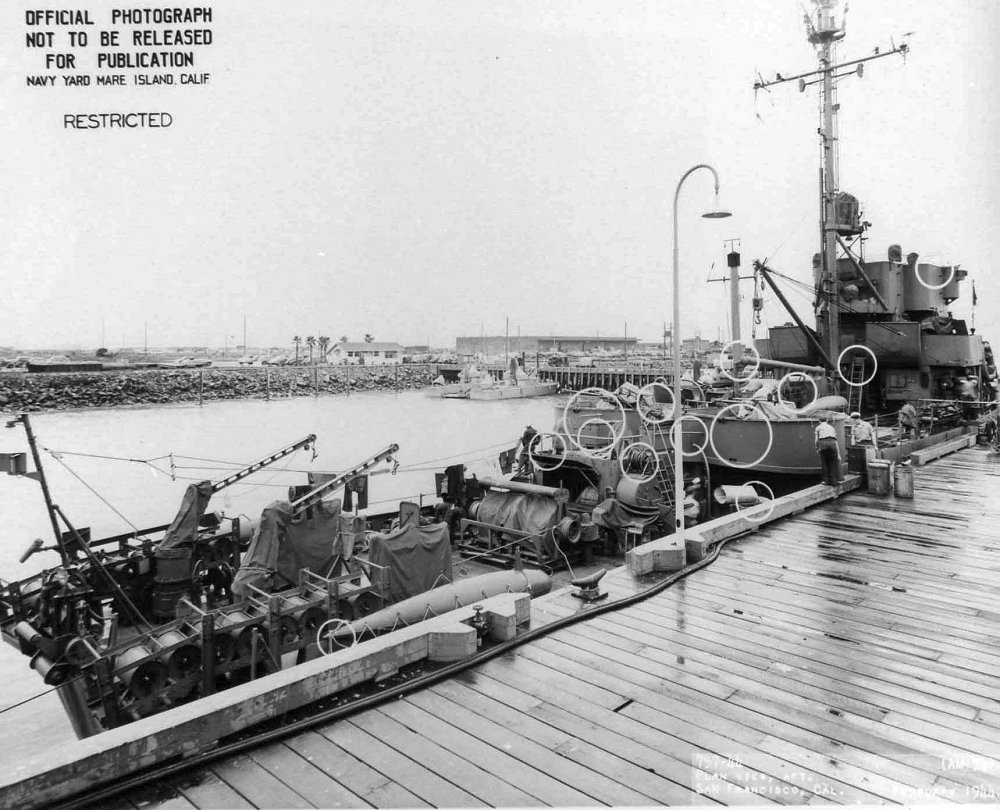

Admirable class rear deck equipment

U.S.Navy

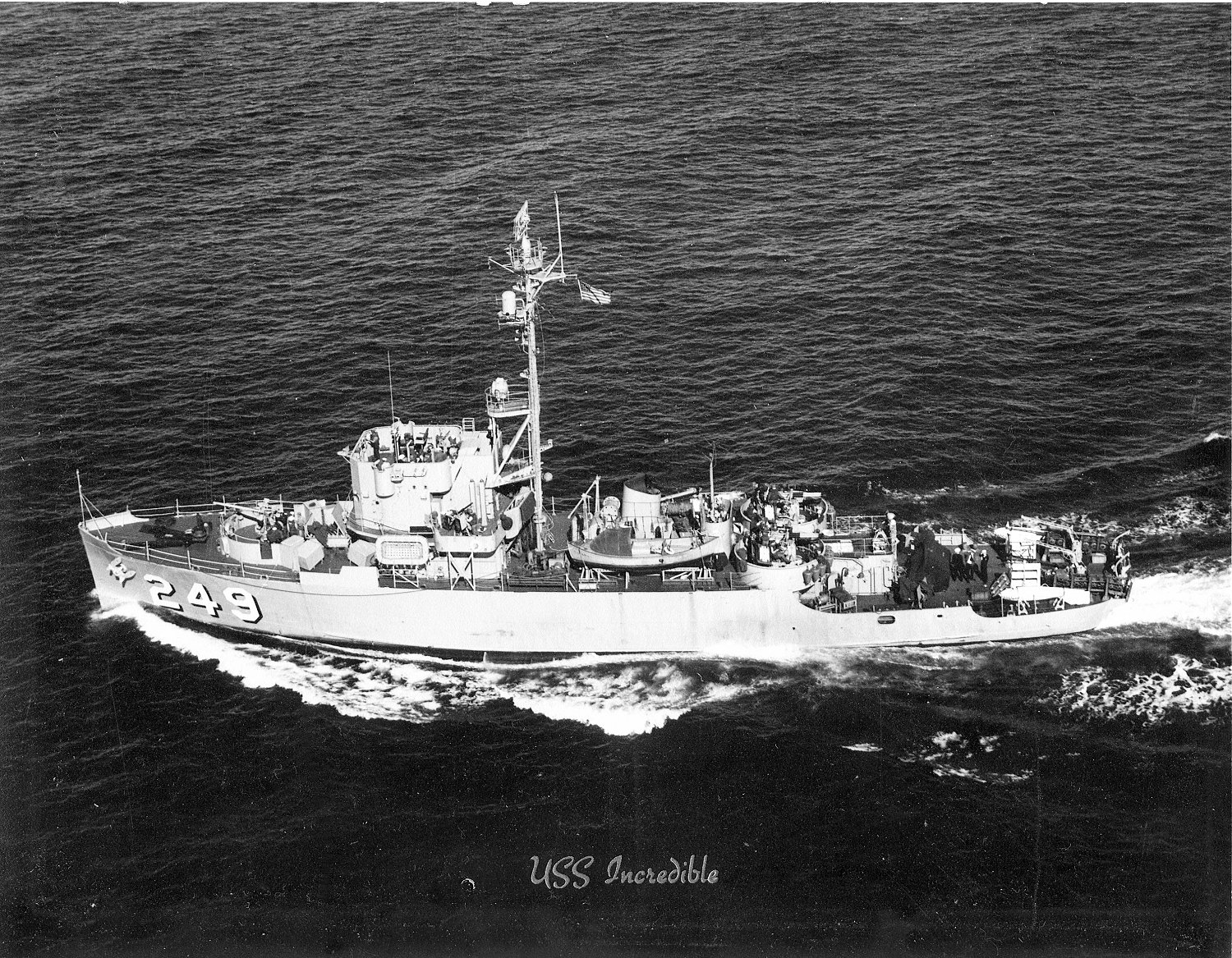

Admirable class aerial view

U.S.Navy


References

DANFS

Gogin (2010; accessed 2012-11-30)

Morison (1959)

NavSource.org (accessed 2007-3-22)

ONI 222 (1945-9-1)

Worth (2001)
