The Pacific War Online Encyclopedia |
Previous: T'uanshantzu | Table of Contents | Next: T-6 Texan, American Trainer |
Tonnage | 1500 tons |
Dimensions |
314'0" by 33'6" by 11'10" 95.71m by 10.22m by 3.61m |
Maximum speed | 22 knots |
Armament |
2 5"/40
dual-purpose guns 15 25mm/60 AA guns 4 depth charge throwers (42 depth charges) |
Machinery |
1-shaft geared turbine (9500 shp) 2 boilers |
Range |
3700 nautical miles (6900 km) at 18 knots |
Cargo |
One of: 480 troops of the SNLF 500 tons cargo 4 Daihatsu and 260 tons cargo 7 Type 2 amphibious tanks plus 220 tons cargo 2 Koryu midget submarines and 184 tons cargo 6 Kaiten and 243 tons cargo |
Modifications |
1944-5: 42 depth
charges 1944-9: 26 25mm guns, 15 13mm/76 machine guns 1945: Type 22 radar |
Sensors |
Type 22 radar |

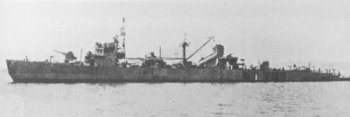

The T-1s were transports based on the Matsu
class and designed to carry
landing craft and amphibious
tanks. One set of machinery was removed to make room for the
troops and cargo, which limited their speed. They were quite versatile
as
shown by the variety of possible cargo loadouts. Landing craft were
launched off of stern rollers.
Unfortunately for the Japanese, they
were completed at a time when the Allies were doing all the
invading. However, the ships were pressed into service to reinforce the
Leyte garrison.
T-1
|
Completed
1944-5-10 |
Sunk by aircraft 1944-6-27
off Palau |
T-4 | Completed 1944-6-15 | Sunk by aircraft 1944-8-4 off Chichi Jima |
T-2 |
Completed 1944-6-25 |
Sunk by aircraft 1944-8-5 off
Chichi Jima |
T-3 |
Completed 1944-6-29 |
Grounded 1944-9-14 off Mindanao |
T-8 |
Completed 1944-8-13 |
Sunk by gunfire 1944-12-24 off Chichi Jima |
T-7 |
Completed 1944-8-15 |
Sunk by gunfire 1944-12-27 near
141.3E 24.8N |
T-6 |
Completed 1944-8-19 |
Sunk by aircraft 1944-11-25
at Balanacan |
T-9 |
Completed 1944-8-28 |
|
T-5 |
Completed 1944-9-14 |
Sunk by aircraft 1944-9-14 off Mindanao |
T-10 |
Completed 1944-9 |
Sunk by aircraft 1944-11-25
at Balanacan |
T-13 |
Completed 1944-11-1 |
|
T-11 |
Completed 1944-11-5 |
Sunk by aircraft 1944-12-7
off Leyte |
T-12 |
Completed
1944-11-11 |
Torpedoed
1944-12-13 off Takao by Pintado |
T-14 |
Completed 1944-12-18 |
Sunk by aircraft 1945-1-15 off Takao |
T-15 |
Completed 1944-12-20 |
Torpedoed
1945-1-17 off Kagoshima by Tautog |
T-16 |
Completed 1944-12-31 |
|
T-17 |
Completed 1945-2-8 |
Sunk 1945-4-2 off Amami Oshima |
T-18 |
Completed 1945-2-12 |
Missing from 1945-3-18 off Kyushu |
T-19 |
Completed
1945-3-16 |
|
T-20 |
Completed 1945-4-23 |
|
T-21 |
Completed 1945-7-15 |
Sunk by aircraft 1945-8-10
off Tsuwajima Island |
References
CombinedFleet.com (accessed 2009-12-25)
Gogin (2010; accessed 2013-4-18)
Jentschura, Jung, and Mickel (1977)
Materials of
IJN (accessed 2009-12-25)
